TOOLMASTER (METRIC)

Surface Marking Out Gauge 225 & 300mm Spindles

TOOLMASTER Surface Marking Out Gauge 225 & 300mm Spindles
CALL NOW AND DO A DEAL! ADD THIS ASSET TO YOUR WORKSHOP
WE OFFER MACHINERY SOLUTIONS AT AFFORDABLE PRICES.
Order Code: M053

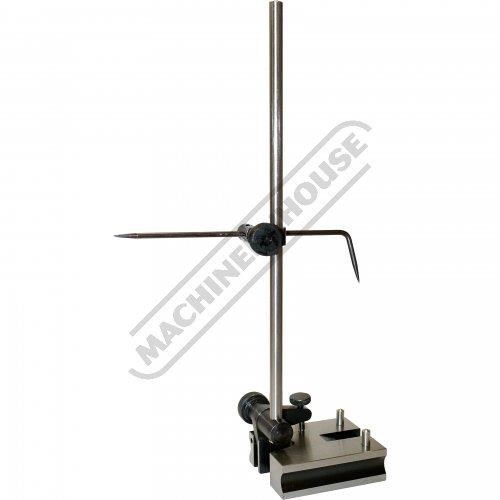

Base dimensions 80 x 63mm, spindle length 300mm, scriber length 175mm. A basic tool for machinists and toolmakers, it is used for accurately scribing lines, transferring measurements or probing surfaces in inspection work. A fully hardened and ground base serves as an accurate reference surface. A machined Vee groove in the base allows the gauge to be used on curved surfaces. A Vee groove at the front end lets the spindle adjust to any angle above or below the base, allowing it to be used both as a height gauge and a depth gauge. Two retractable pins allow the gauge to be located against the edge of a surface plate or T-slot for linear work. A 1/4`` (6.35 mm) hole in the spring loaded scriber holder allows a dial indicator to be attached for checking flatness, parallelism, heights, depths etc. Grooves on the side of the base give a comfortable grip. Well tapered scriber for better sighting while working. The scriber is hardened to RC55-60 and is tapered for a good view of the work

Features:
A fully hardened and ground base which serves as an accurate reference surface
A machined Vee groove in the base allows the gauge to be used conveniently on curved surfaces
A Vee groove at the front end allows the spindle to adjust to any angle above or below the base allowing it to be used as a height and also as a depth gauge.
Two retractable pins allow the gauge to be located against the edge of a surface plate or T-slot for linear work
1/4`` (6.35 mm) hole in the spring loaded scriber holder allows a dial indicator to be attached conveniently making the gauge useful for checking flatness parallelism heights depths etc.
Grooves on the side of the base allow for comfortable grip.
Well tapered scriber for better sighting while working. The scriber tip is hardened to 55-60 HRC.

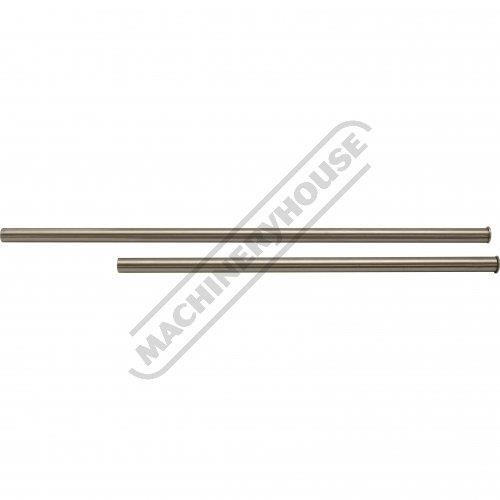

Supplied with two spindles (225 & 300mm)



Specifications:
ORDER CODE: M053
Spindles Supplied (mm): 225 & 300
Includes: Scriber


To Purchase Online Please Visit The Machineryhouse Website & Search For 'M053'
