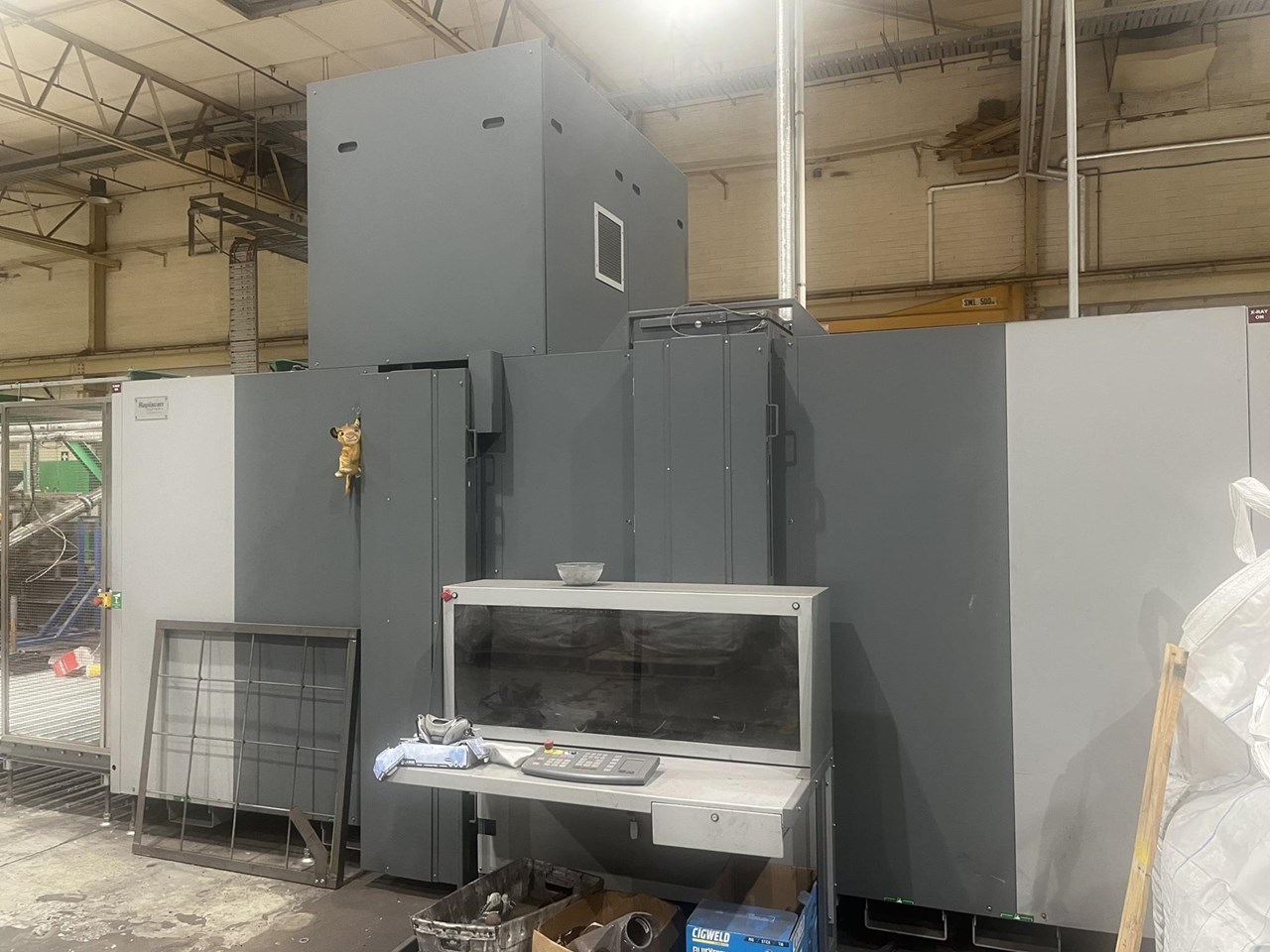

RAPISCAN 632DV DUAL VIEW X-RAY PALLET AND CARGO SCREENING SYSTEM

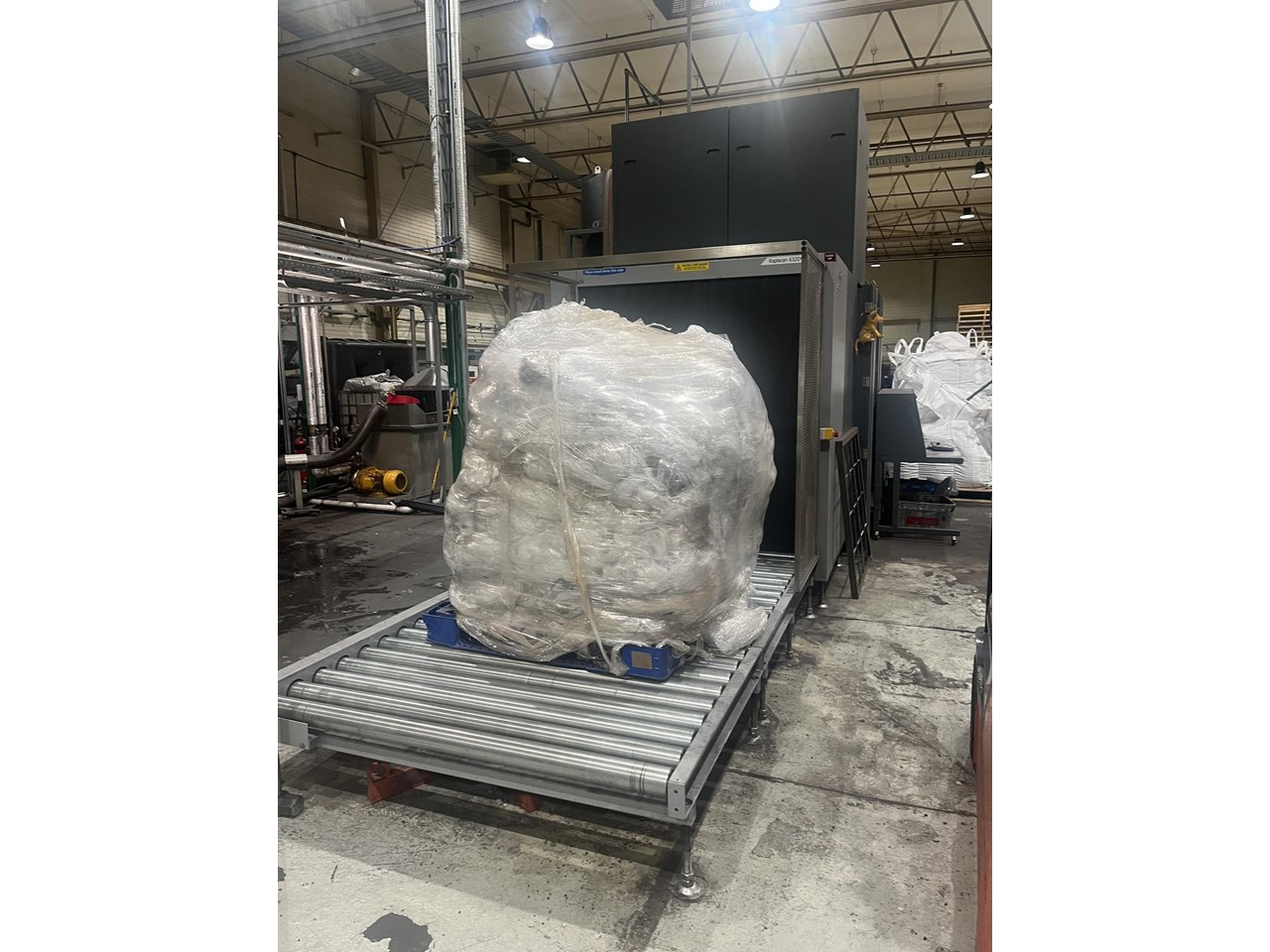

This x-ray system is in great working condition. It was previously used to screen pallets of waste.
It has been well maintained and serviced.

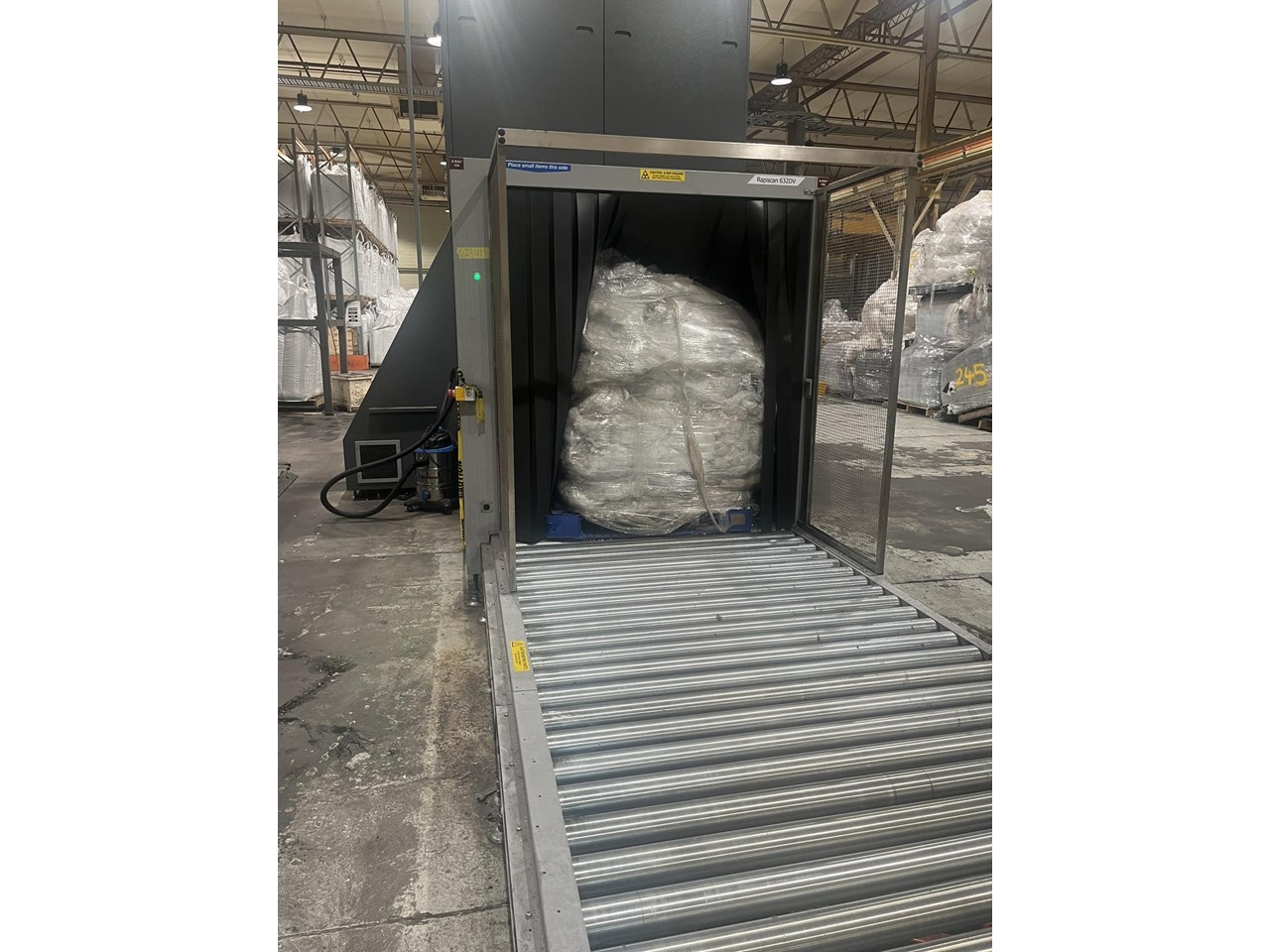

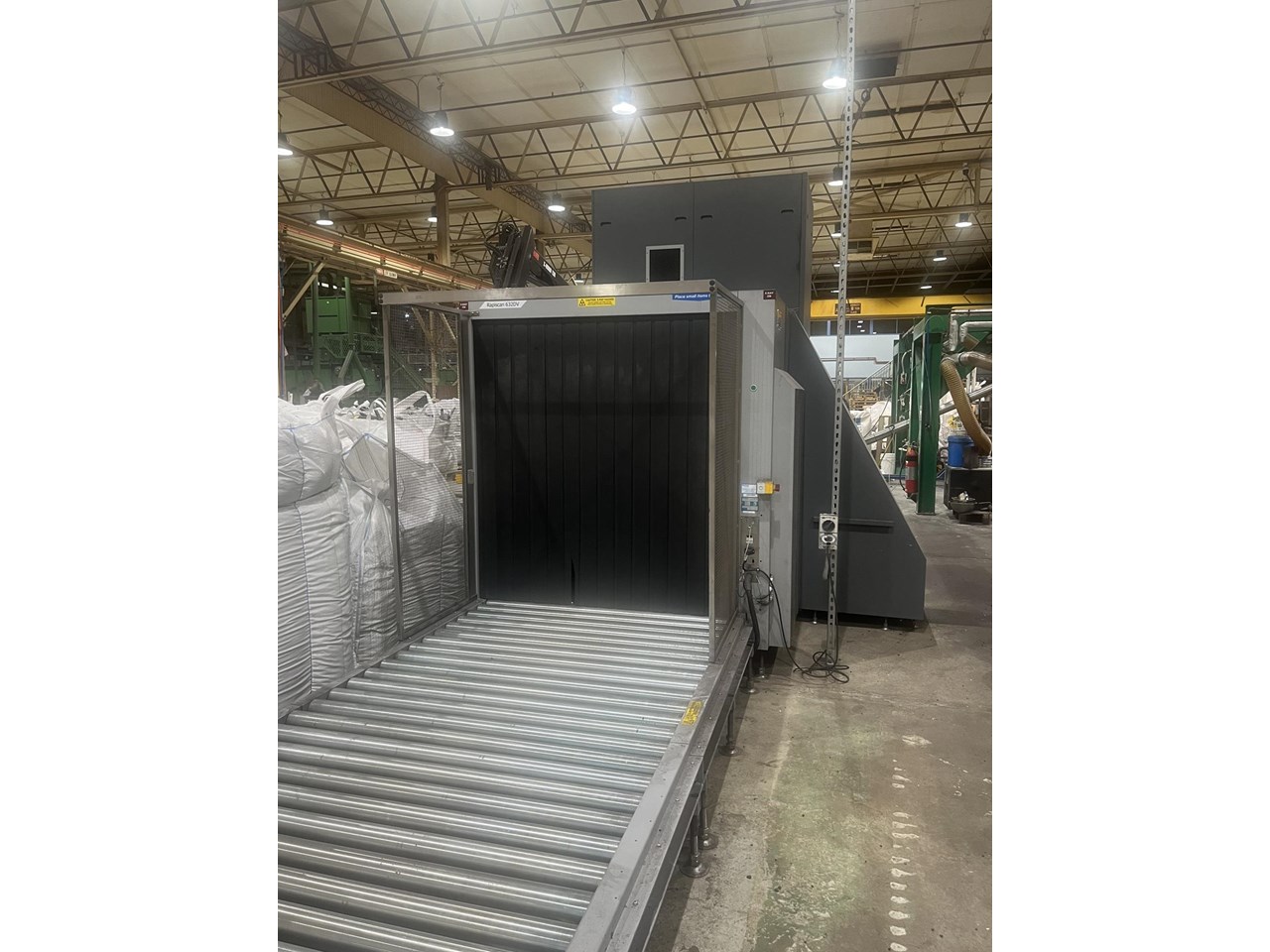

The Rapiscan 632DV is a Dual View Advanced cargo and large parcel screening system with a generous tunnel opening of 1,537 mm wide by 1,650 mm high and a heavy-duty roller bed.

It is designed for inspection of pallet and break bulk cargo. Typically cargoes weighing up to 3000kg can be screened without compromising throughput.

Make: Rapiscan Systems
Model: 632DV
Made in USA

Features
- Multi Energy Imaging (4 Color)
- View Previous/Next Bag
- Image Archive
- Configurable Image Processing Keys
- Baggage Counter
- Date / Time Display
- Search Indicator
- UPS (Uninterrupted Power Supply)
- Multi Language Support

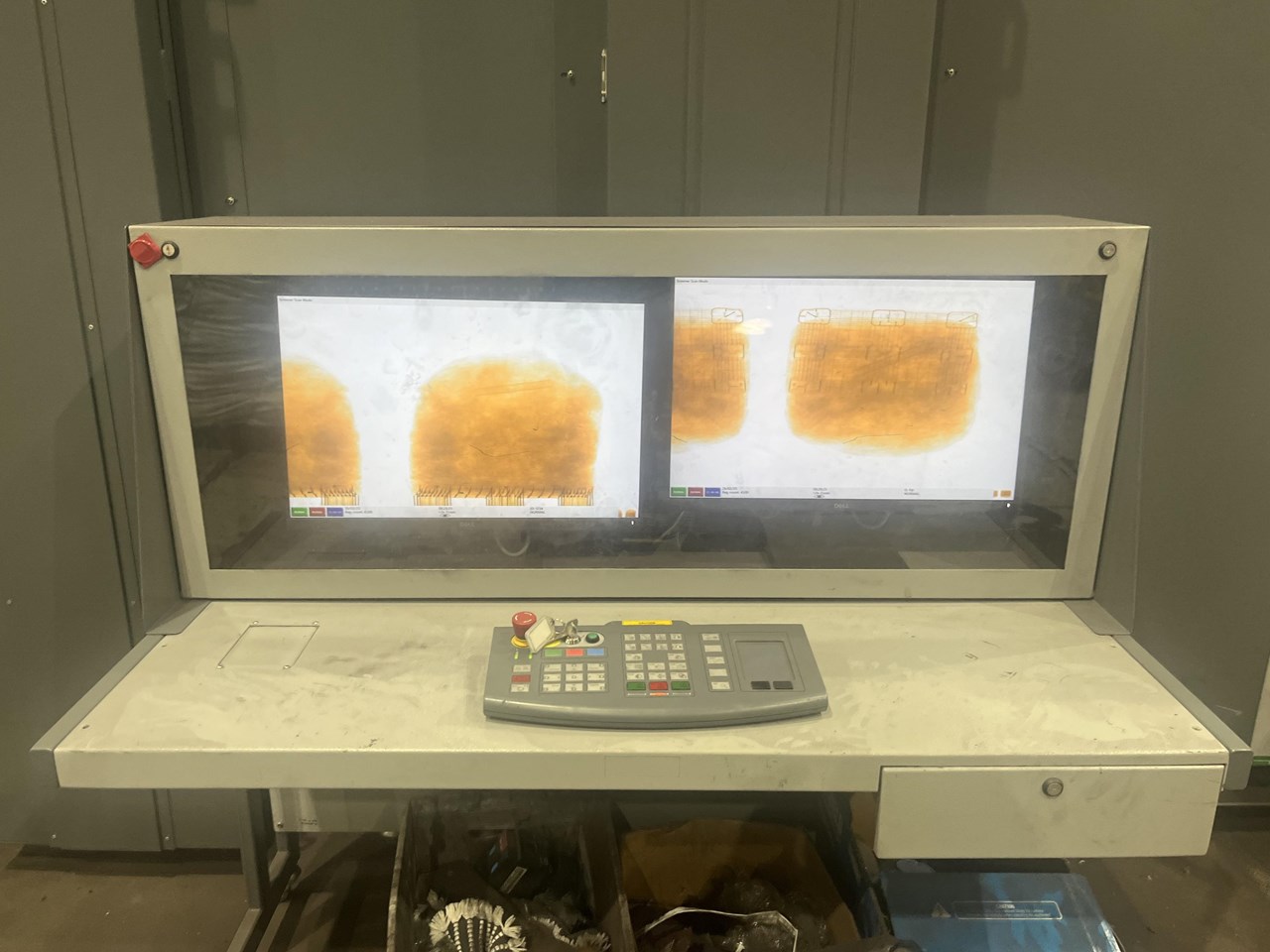

- Flat Panel Monitor

Image Processing Functions
- Crystal Clear
- Black and White
- Organic / Inorganic Stripping
- Inverse Video
- High Penetration
- Pseudo Color
- Low Penetration
- Variable Edge Enhancement
- Variable Color Stripping
- Variable Gamma
- Variable Density
- Dynamic Continuous Zoom & Panning
- Fixed Zoom (64x)

DUAL VIEW ADVANCED TECHNOLOGY

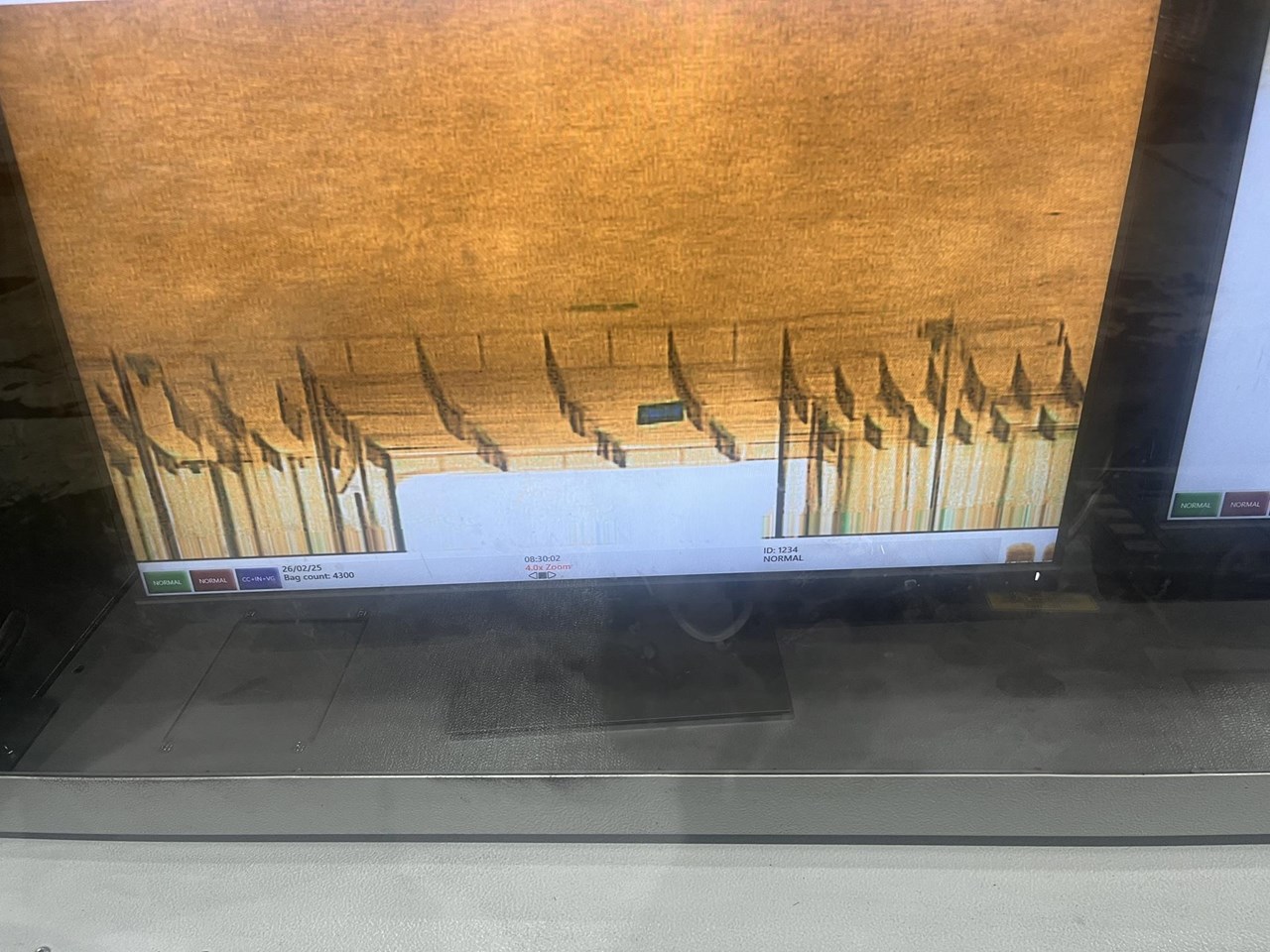

As mandated by US and EU regulators, the 632DV utilizes a dual-view technology which produces two simultaneous images (vertical and horizontal views) of the scanned object. It provides a more complete image, thereby reducing the need for repositioning and rescanning and enabling rapid, accurate and comprehensive threat detection.

REGULATORY COMPLIANCE
Rapiscan 632DV performance is in full compliance with the European Union regulations (EC) No. 300/2008, (EU) No. 2015/1998 and Commissions Decision C (2015)8005 for aviation security.

X-RAY GENERATOR AND IMAGE PERFORMANCE
Steel Penetration: 50 mm typical; 45 mm standard
Wire Resolution: 40 AWG typical; 38 AWG standard
Cooling: Sealed oil bath with forced air
Anode Voltage: Operating at 200kV
Tube Current: 1.0 mA
Orientation: Vertically Downward and Horizontal

Tunnel Size: 1537 x 1650mm
Conveyor Load: 3000kg Max (evenly distributed)
Conveyor Height: 345mm

Weight: 4823kg
Overall Dimensions (mm): 7788 x 2816 x 3331 h
