HAFCO CP-20LT

CP-20L3 Coolant Pump 1/8hp, 415V Motor 135mm Submersible Leg & 20 Litres/Min. At 1 Metre Lift

HAFCO CP-20L3 Coolant Pump 1/8hp, 415V Motor 135mm Submersible Leg & 20 Litres/Min. At 1 Metre Lift
CALL NOW AND DO A DEAL! ADD THIS ASSET TO YOUR WORKSHOP
WE OFFER MACHINERY SOLUTIONS AT AFFORDABLE PRICES.
Order Code: P233

Manufactured in Taiwan

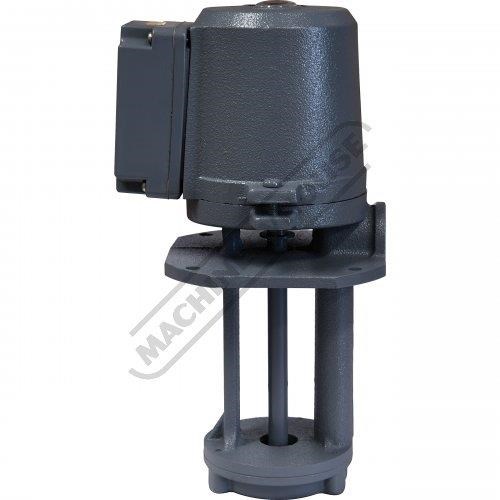

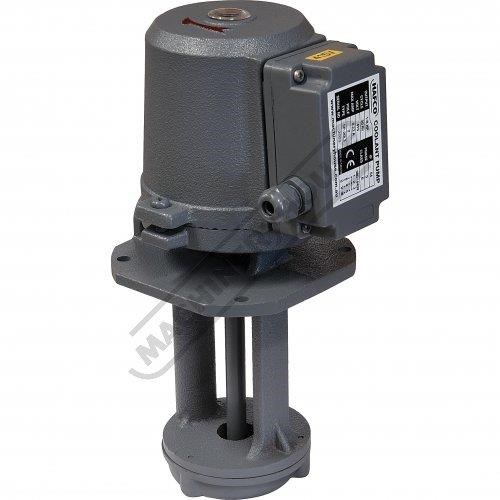

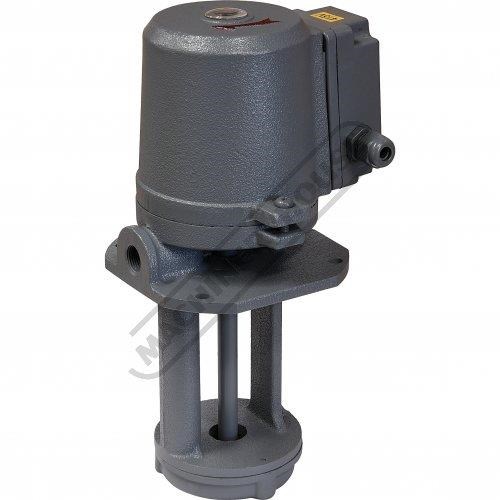

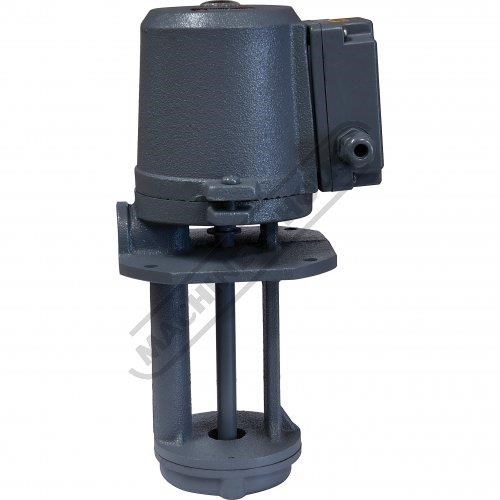

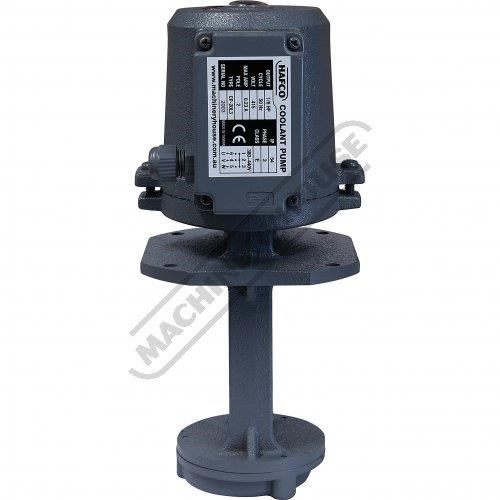

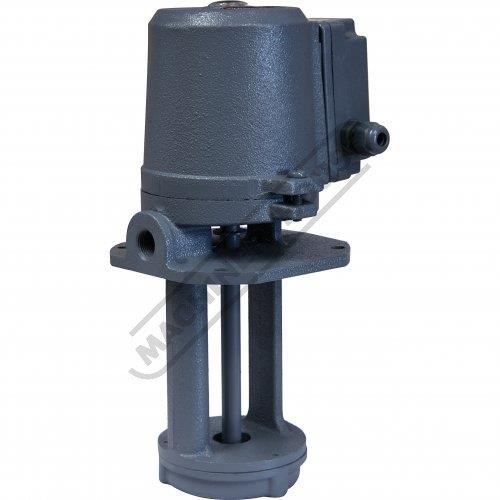

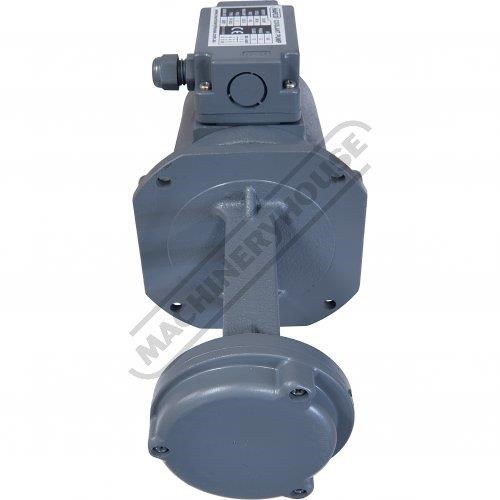

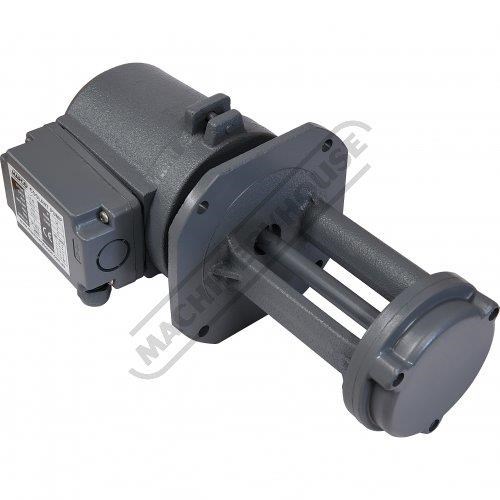

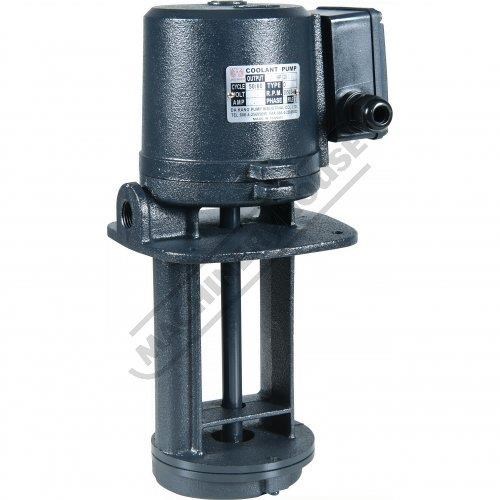

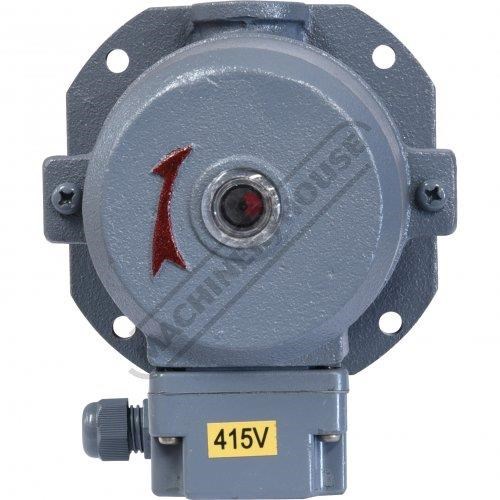

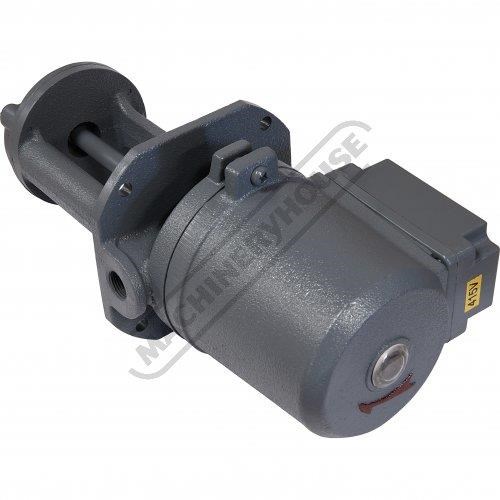

135mm Leg COOLANT PUMP BARE - 415V
Bare pump for almost any application

Features:
20 litres/min. at 1 metre lift
135mm submersible leg
Non-corrosive plastic impellers

Please Note: Motor housing should never be submersed or have any fluid splashed on it


Specifications:
ORDER CODE: P233
MODEL: CP-20L3
Type: Coolant Pump
Tank Capacity (Litre): ~
Discharge at 1 metre Lift (L/min): 20
Length (L) (mm): 290
Submerge Depth (L1) (mm): 134
4 Mount Holes (PCD) (mm): 128
Threaded Outlet (BSPT): ??3/8``
A (mm): 96
B (mm): 95
C (mm): 290
D (mm): 134
E (mm): 121
F (mm): 90
G (mm): 156
H: 3/8`` PT
I (mm): 128
J (mm): 8
K (mm): 6
Motor Power (hp): 1/8
Voltage / Amperage (V / amp): 415
Dimensions (L x W x H) (mm): 300 x 150 x 210
Nett Weight (kg): 6.1
