CATERPILLAR 988K

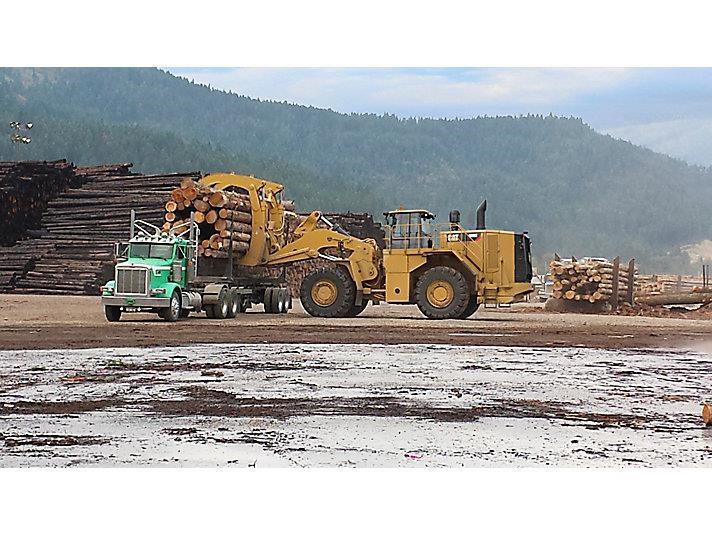

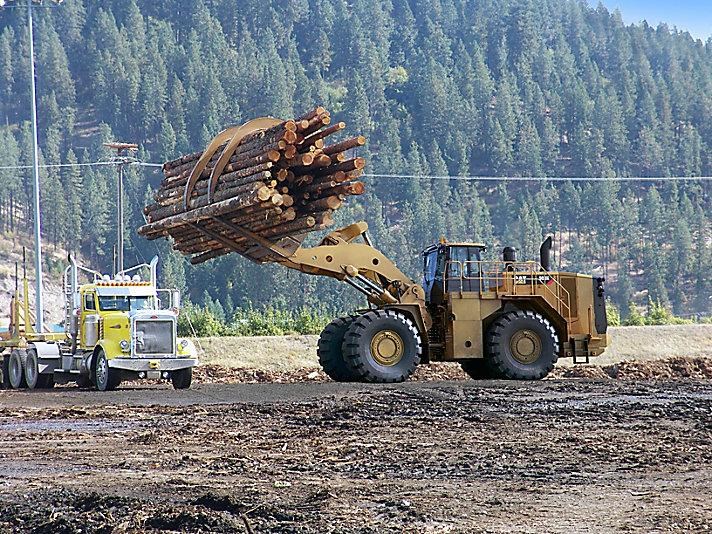

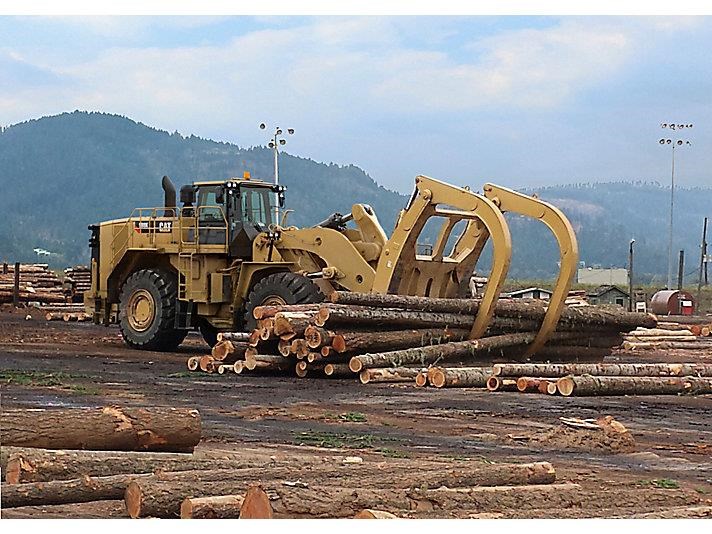

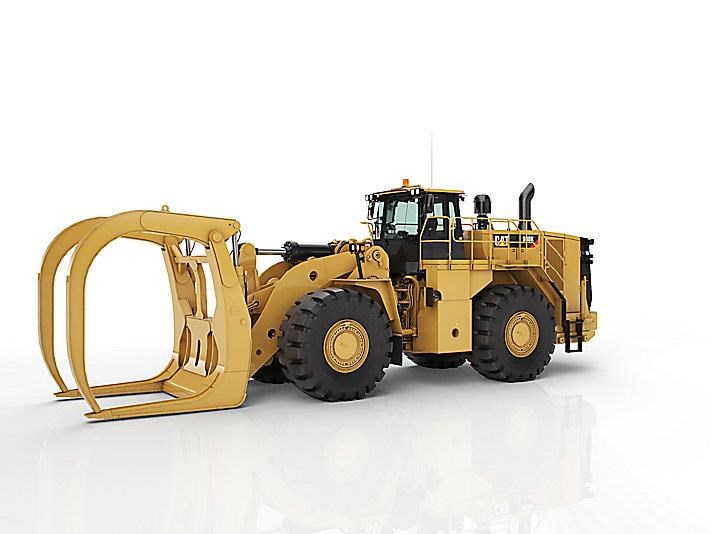

CATERPILLAR 988K MILLYARD ARRANGEMENT WHEEL LOADER OVERVIEW Introduced in 1963, the 988 has been the industry leader for 50 years. Focused on helping our customers succeed, we have continued to build upon each new series. The 988K continues our legacy of reliability, performance, safety, operator comfort, serviceability, and efficiency. The 988K Millyard Arrangement is designed to meet the demands of millyard applications. The features of the 988K Millyard work together to provide a durable and reliable machine to meet the needs of the modern millyard. OPERATING SPECIFICATIONS Operating Weight - 63600.0 kg ELECTRICAL Alarm, back-up Alternator, single 150 amp Batteries, dry Converter, 10/15 amp, 24V to 12V Lighting system (halogen, work lights, access and service platform lighting) Starting and charging system, 24V Starter emergency start receptacle Starter lockout in bumper Transmission lockout in bumper OPERATOR ENVIRONMENT Graphical Information Display, displays real time operating information, performs calibrations and customizes operator settings Air conditioner Cat Detect Vision, rear vision camera system Cab, sound suppressed and pressurized, integrated rollover protective structure (ROPS/FOPS) radio ready for entertainment, includes antenna, speakers and converter (12-volt 5-amp) and power port Controls, lift and tilt function Heater, defroster Horn, electric Instrumentation, gauges: - Coolant temperature - Engine hour meter - Hydraulic oil temperature - Power train oil temperature Light, cab, dome Lunchbox, beverage holders Mirrors, rearview (externally mounted) Rimpull Control System Seat, Cat Comfort (cloth), air suspension, six-way adjustable Seat belt, retractable, 76 mm (3 in) wide STIC Control System UV glass Transmission gear indicator Vital Information Management System (VIMS) with Graphical Information Display: External Data Port, Customizable Operator Profiles, Cycle Timer, Integrated Payload Control System Wet-Arm wipers/washers (front and rear): - Intermittent front and rear wipers Lights, directional POWER TRAIN Swing out radiator system with 6 fpi radiator cores Auto-reversing fan with adjustable controls and manual cycle Hinged, perforated side doors Brakes, oil-cooled, multi-disc, service/secondary Case drain screens Crankcase guard Electro hydraulic parking brake Engine, C18 MEUI diesel, turbocharged/aftercooled Ground level engine shutoff Turbine precleaner, engine air intake Radiator, Next Generation Modular (NGMR) Starting aid, ether, automatic Throttle lock, electronic Torque converter, Impeller Clutch (ICTC) with Lock up clutch (LUC), Rimpull Control System Transmission, planetary powershift, 4F/3R electronic control OTHER Automatic bucket lift kickout/positioner Base machine price includes a rim allowance Hydraulically driven demand fan Couplings, Cat O-ring face seals Doors, service access (locking) Ecology drains for engine, radiator, hydraulic tank Fuel tank, 731 L (188 gal) Hitch, drawbar with pin Hoses, Cat XT??? Hydraulic, steering and brake filtration/screening system Cat Clean Emission Module Oil sampling valves Premixed 50% concentration of extended life coolant with freeze protection to -34?? C (-29?? F) Rear access to cab and service platform Steering, load sensing Toe kicks Vandalism protection caplocks 988K MILLYARD ARRANGEMENT OPTIONAL EQUIPMENT POWER TRAIN -50?? C (-58?? F) antifreeze Engine oil change system, high speed, Wiggins Engine block heater 120V or 240V High ambient cooling - software OPERATOR ENVIRONMENT Cab precleaner AM/FM/CD/MP3 radio Satellite Sirius radio with bluetooth LED warning strobe CB radio ready Window pull down visor MISCELLANEOUS ATTACHMENTS Front and rear roading fenders Fast fill fuel system (Shaw-Aero)
