CATERPILLAR 422F2

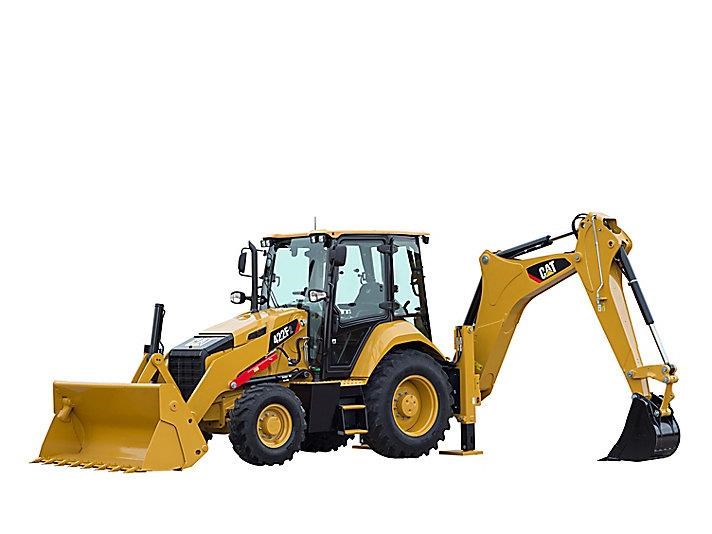

CATERPILLAR?? 422F2 BACKHOE LOADER OVERVIEW Caterpillar has a well proven history in the construction equipment industry and has been producing the highest quality machines for 90 years, making progress possible and driving positive and sustainable change on every continent. For 30 years Caterpillar has produced the British built backhoe loader. From the A Series to this new F2 Series we have done our best to produce a machine that is designed with the operator in mind, providing reliability, power and a quality operator environment. We have combined 30 years of passion, expertise and experience to create the latest Backhoe Loader offering from Caterpillar, the F2. ENGINE UNITS: US METRIC Power - Net - 52.9 kW ENGINE - EU STAGE II STANDARD OFFERING* Bore - 105.0 mm Displacement - 4.4 l Maximum Torque - 1,400 rpm - 288.0 N??m Model - 3054C 56.5 kW Naturally Aspirated Net Power - 2,200 rpm - 80/1269/EEC - 52.9 kW Net Power - 2,200 rpm - ISO 9249 - 52.9 kW *Meets Stage II/Tier 2 equivalent emission standards. Rated Power (Standard) - 2,200 rpm - Gross - ISO 14396 - 56.5 kW Stroke - 127.0 mm Torque Rise - 1,400 rpm - Net - 27% WEIGHTS Operating Weight - Nominal - 7529.0 kg Operating Weight - Maximum - 11000.0 kg CAB Cab, Standard Cab ROPS and FOPS are standard. ROPS (Rollover Protective Structure) offered by Caterpillar for this machine meets ROPS criteria ISO 3471:1994 and FOPS (Falling Objects Protective Structure) criteria ISO 3449:1992. Beacon Socket (??2) Cab Heater Cab Internal Light Cup Holders (??2) Differential Lock Button on Loader Control Removable Floor Mat Front and Rear Side Opening Windows Front Headlights (May vary depending on region) Full Width Perforated Sun Visor Fully Adjustable Halogen Work Lights (??8) Cab, Fully Glazed Gauge Cluster Horn, Front Horn, Rear Instrument Panel Vandal Guard Internal Power Socket (??1) Rear Tail Lights (LED) Left and Right Opening Doors Left Hand Storage Console Safety Lock, Hydraulics Safety Lock, Transmission Seat, Fabric Self Cancelling Directional Indicator Steering Wheel Column, Tilt Adjustment Window Wipers, Rear Window Wipers, Front TIRES/STEERING/BRAKES 100% Differential Lock Hydraulic Boosted Brakes (dual pedals) Tires 26 inch ENGINE/TRANSMISSION Battery 750 CCA, Maintenance Free (standard) Engine 56.5 kW (77 hp) Cat 3054C DINA Jump Start Connector Transmission Neutralizer Transmission, 4-Speed Manual
